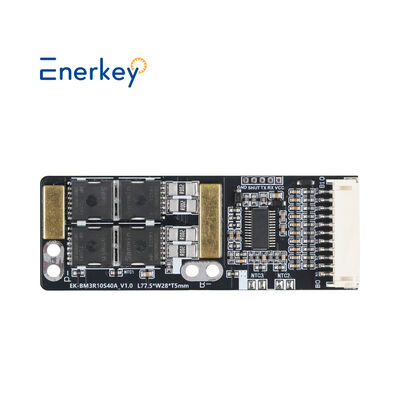

Enerkey BMS 3S 4S 5S 6S 7S 8S 9S 10S 40A Li-Ion LiFePo4 LTO SIB 18650 Batteries BMS Battery Management System for Vehicles

Все категории

BMS для хранения электроэнергии

Электрический трехколесный BMS

Электрический вилочный погрузчик BMS

Умный активный балансировщик BMS для тяжелых транспортных средств

Свяжитесь мы

Mrs. Kiwi Xiao

kiwi@enerkey.cn

+8615387469240

Enerkey-Tech

Контакт теперь

Enerkey BMS 3S 4S 5S 6S 7S 8S 9S 10S 40A Li-Ion LiFePo4 LTO SIB 18650 Batteries BMS Battery Management System for Vehicles

Наименование марки:	Enerkey
Номер модели:	ЭК-БМ3Р10С40А
МОК:	10peeces
цена:	$7.0-$7.9
Подробная информация об упаковке:	Сильная бумажная коробка +пена Ева
Условия оплаты:	LC, D/A, D/P, T/T, Western Union, MoneyGram

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Шэньчжэнь, Китай

Сертификация:

ISO9001/CE/ROHS

Название продукта:

3S 4S 5S 6S 7S 8S 9S 10S 40A литиевая батарея BMS

Толщина меди:

2 унции

Приложение:

Домашнее хранение энергии, электрический скутер

Толщина доски:

1,6 мм

Тип батареи:

Литий-ион/Lifepo4/Lto/SIB

Допустимый диапазон рабочего напряжения:

0-30В

Номинальный ток разряда:

Пик начального тока:

Используется для:

Корпус защиты литиевых батарей

Ключевые слова:

3С-10С БМС

Базовый материал:

Отделка поверхности:

Бессвинцовый полиэтиленовый баллон

Размер продукта:

Д77,5хШ28хТ5мм

Вес с упаковкой:

0,08 кг

Поставка способности:

1000000 штук в день

Характер продукции

Enerkey BMS 3S 4S 5S 6S 7S 8S 9S 10S 40A Li-Ion LiFePo4 LTO SIB 18650 Batteries BMS Battery Management System for Vehicles

Product Description

Core Parameters
Voltage Range: Supports 3-cell (12.6V) to 10-cell (36V) lithium battery packs,

compatible with mainstream cells such as ternary lithium/lithium iron phosphate/lithium titanate/sodium ion
Continuous Current: 40A high-current design to meet the needs of high-power devices
Protection Functions: Overcharge/over-discharge/overcurrent/short circuit protection, response time <100ms

Technical Characteristics
High-Precision Monitoring
Voltage detection accuracy ±10mV, current accuracy ±2%@FS
Temperature detection accuracy ±2℃, supports dual temperature control of cell/ambient environment

Heat Dissipation Design
Aluminum substrate + heat sink structure, supports wide operating temperature range of -20℃~60℃

Application Scenarios
Power tools, drones, outdoor energy storage equipment
Photovoltaic energy storage systems, monitoring power supply equipment

Product Advantages
Dual IC redundancy design, improving system reliability
Low internal resistance (<50mΩ), reducing energy loss
Supports sleep/wake-up function, standby power consumption <1mA

Enerkey BMS 3S 4S 5S 6S 7S 8S 9S 10S 40A Li-Ion LiFePo4 LTO SIB 18650 Batteries BMS Battery Management System for Vehicles 0

Enerkey BMS 3S 4S 5S 6S 7S 8S 9S 10S 40A Li-Ion LiFePo4 LTO SIB 18650 Batteries BMS Battery Management System for Vehicles 1

Enerkey BMS 3S 4S 5S 6S 7S 8S 9S 10S 40A Li-Ion LiFePo4 LTO SIB 18650 Batteries BMS Battery Management System for Vehicles 2

Enerkey BMS 3S 4S 5S 6S 7S 8S 9S 10S 40A Li-Ion LiFePo4 LTO SIB 18650 Batteries BMS Battery Management System for Vehicles 3

Technical Parameters

	Item type		Parameters
1	Parameter Overview	Product Model	EK-BM3R10S40A
		Product Size(mm)	L77.5W28T5
		Product Weight(kg)	0.08
		Product Material	FR-4 / Lead-free spray tin
		Applicable battery type	Lifepo4		Li-ion		Lto		SIB
		Applicable battery string	3S - 10S		3S - 10S		3S - 10S		3S - 10S
		Rated discharge current	40A		40A		40A		40A
		Peak starting current	80A		80A		80A		80A
	Item type		Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)
2	Charging protection	Overvoltage protection voltage value	3.65V/1S	3.50V/1S	4.25V/1S	4.05V/1S	2.85V/1S	2.75V/1S	3.95V/1S	3.80V/1S
		Overcurrent value	40A/2S, disconnect charger to recover
		Low temperature value	Charge over-temperature protection 60℃/2S / Release 55℃/2S
		Overtemperature value	Charging low temperature protection -5℃/2S / Release 0℃/2S
3	Discharge protection	Undervoltage protection voltage value	2.30V/1S	2.70V/1S	2.75V/1S	3.0V/1S	1.70V/1S	1.80V/1S	1.50V/1S	2.00V/1S
		①Overcurrent protection value	45A/2S, disconnect load or activate charging
		②Overcurrent protection value	80A/0.5S, disconnect load or activate charging
		Short circuit protection value	100A/128uS, disconnect load or charge activated
		Low temperature value	Discharge over-temperature protection 65℃/2S, release 60℃/2S
		Overtemperature value	Discharge low temperature protection -20℃/2S, release -10℃/2S
4	Others	Standby current consumption	25uA
		Motherboard lock voltage	/

Size $ Packing List

Package included:

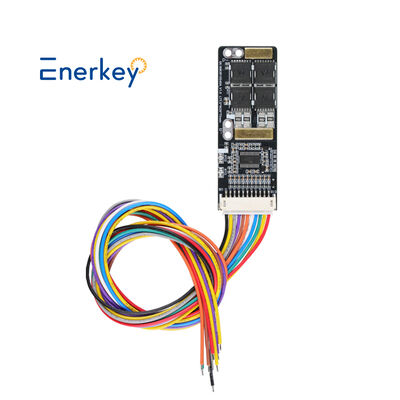

1 * BMS

1 * NTC Terminal Cable(Please tell us if you need it with NTC)

1 * Terminal Cable

Enerkey BMS 3S 4S 5S 6S 7S 8S 9S 10S 40A Li-Ion LiFePo4 LTO SIB 18650 Batteries BMS Battery Management System for Vehicles 4

Wire Diagram

Enerkey BMS 3S 4S 5S 6S 7S 8S 9S 10S 40A Li-Ion LiFePo4 LTO SIB 18650 Batteries BMS Battery Management System for Vehicles 5

Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.

4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
